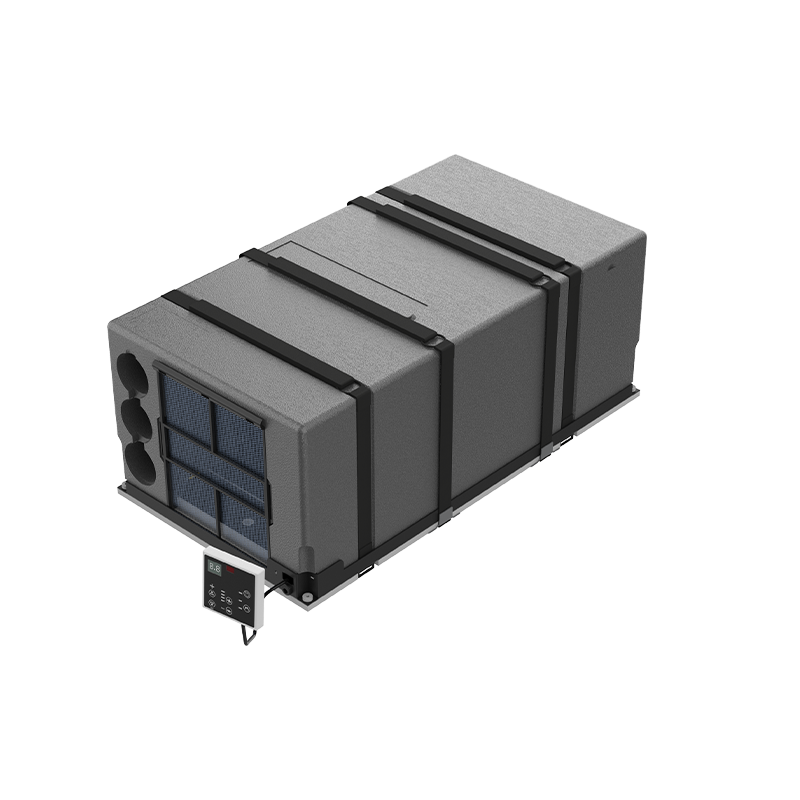

Furrion 9000 BTU Under Bunk Air Conditioner 2.6kW — FACB09HM

Comfort through hot summers and cold mornings

Create a more comfortable touring environment with purpose-built RV climate control designed around compact spaces and demanding conditions.

Compact reverse-cycle heating and cooling for small to medium caravans, campers and motorhomes. The Furrion FACB09HM fits under a bunk, bench or cabinet, preserving roof space for solar panels.

Download the Furrion under bunk air conditioner brochure (PDF)

Coast to Coast code: 100-04000   Furrion model: FACB09HM (Lippert 2022011806).

• Cooling capacity: 2,637W (approximately 9,000 BTU/h)
• Heating capacity: 2,784W
• 220–240V AC, 50Hz
• Input power: 1,000W cooling / 800W heating
• Nominal current: 4.2A; locked-rotor current: 22.5A
• Maximum outlet airflow: 490m³/h
• Fan-only, dehumidification, timer and automatic temperature modes

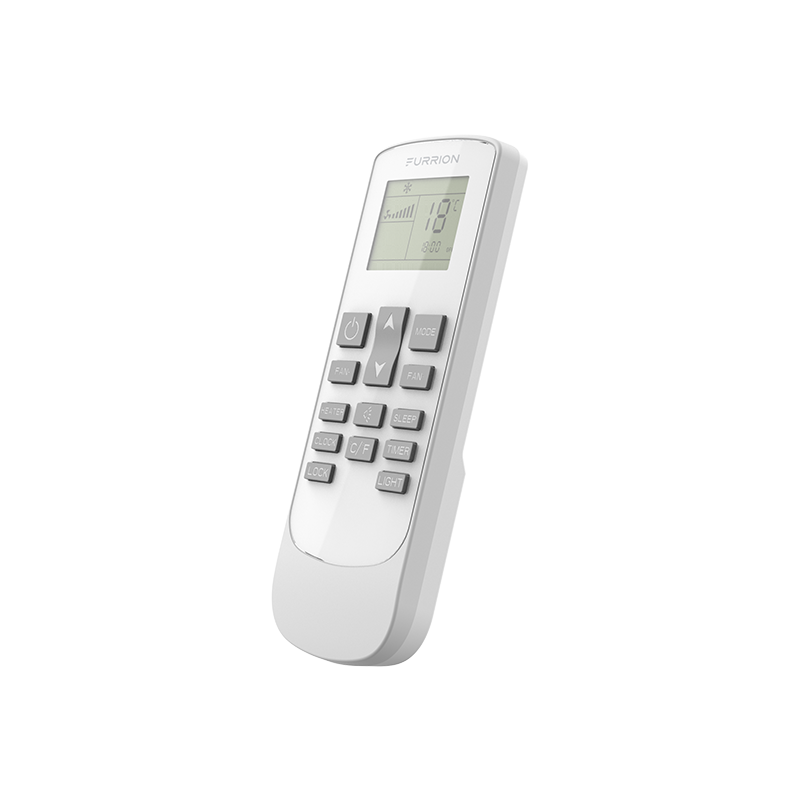

• Remote control or wired wall pad control
• R410A refrigerant; IPX5 protection
• Operating temperature: −7°C to +43°C
• Unit dimensions: approximately 734 × 398 × 296mm; unit weight approximately 28kg

Installation and delivery: Air ducting is sold separately. Confirm the required duct layout and ventilation openings for your vehicle before ordering. Bulky freight is quoted separately; contact us for the best delivery cost.

Fair freight for this product

We keep the advertised product price competitive instead of loading it with a worst-case freight allowance. Order online and we will confirm the best available delivery cost for your address before dispatch. Remote, unique-location, restricted-access or tail-lift deliveries may attract an additional carrier charge.
